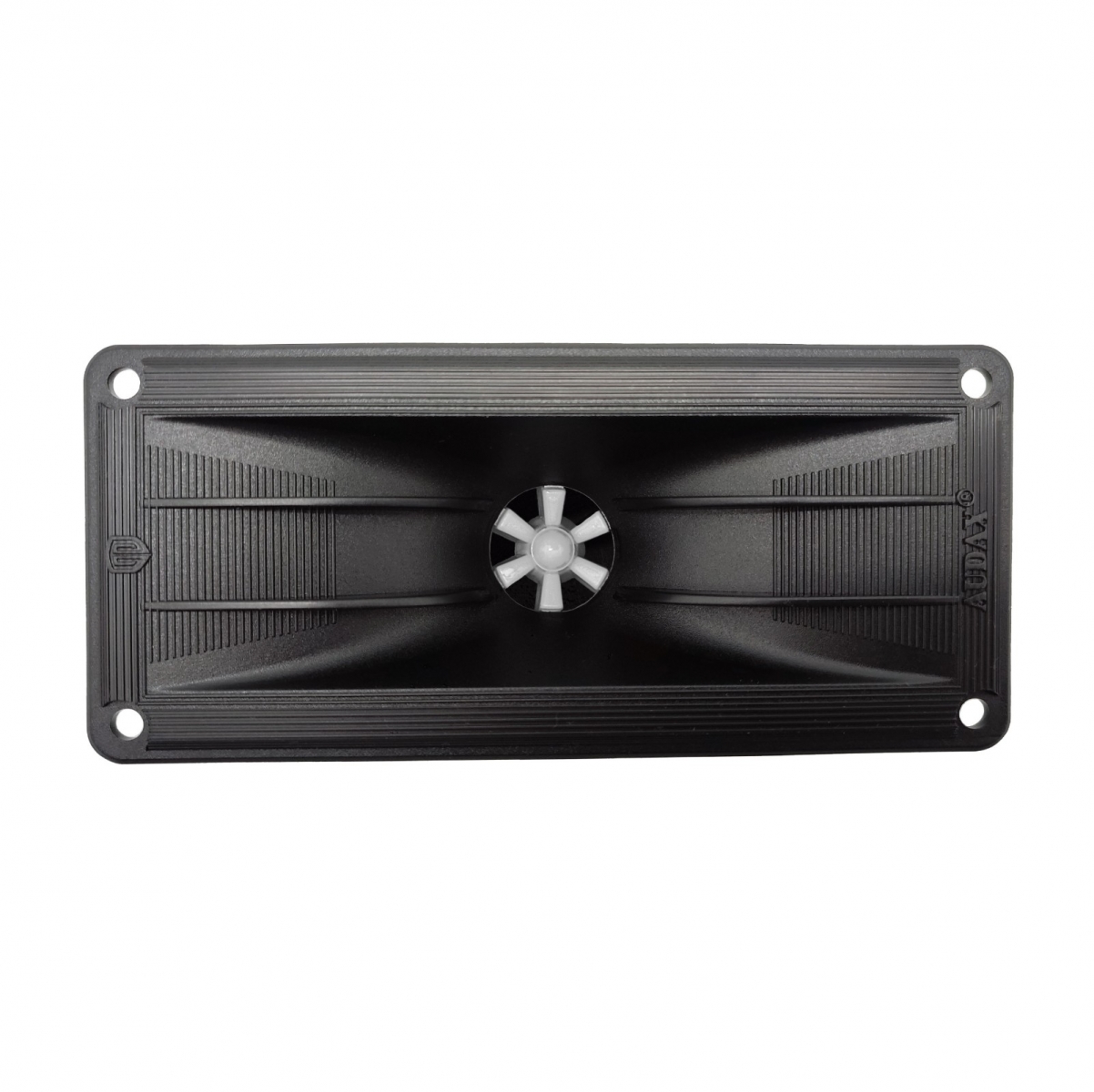

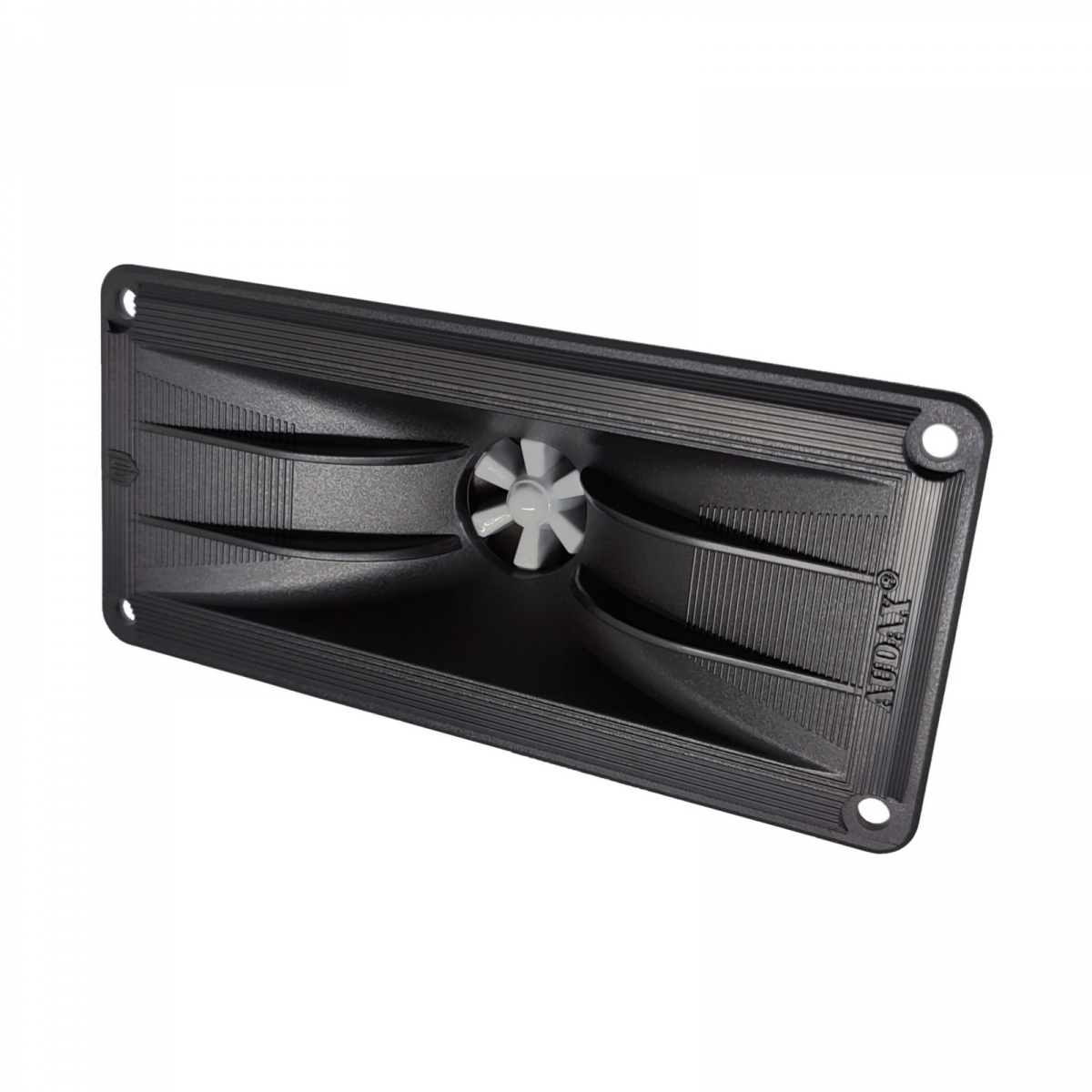

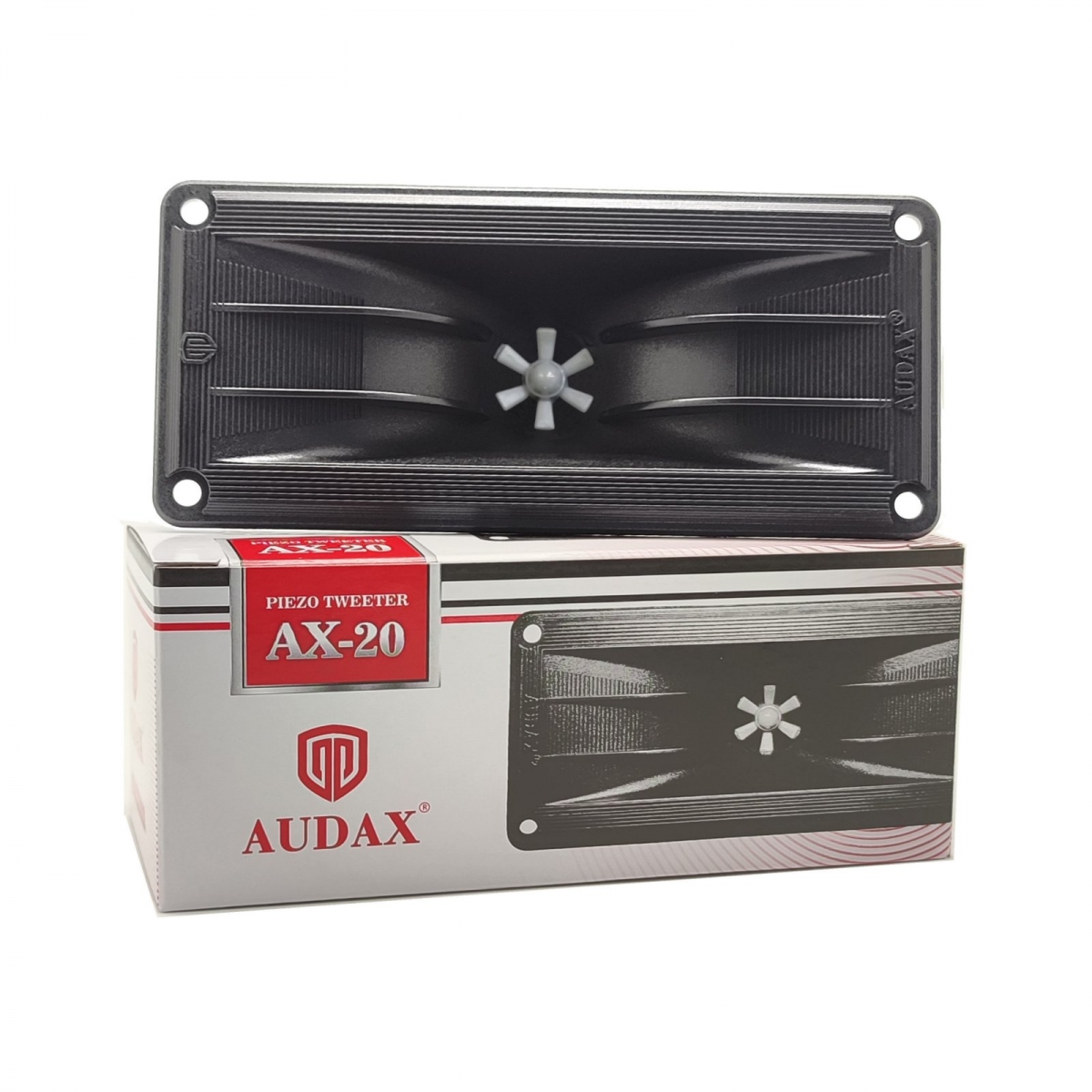

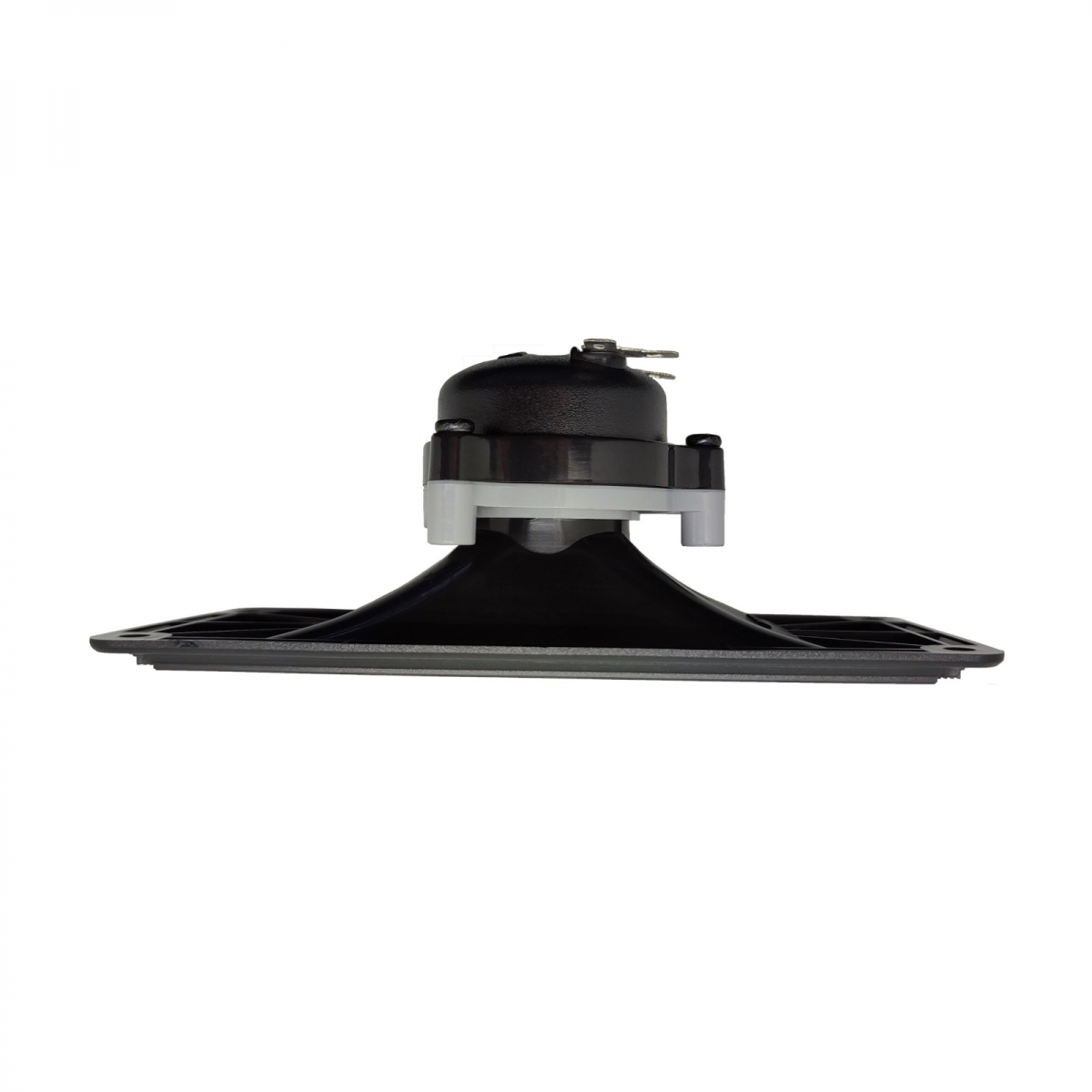

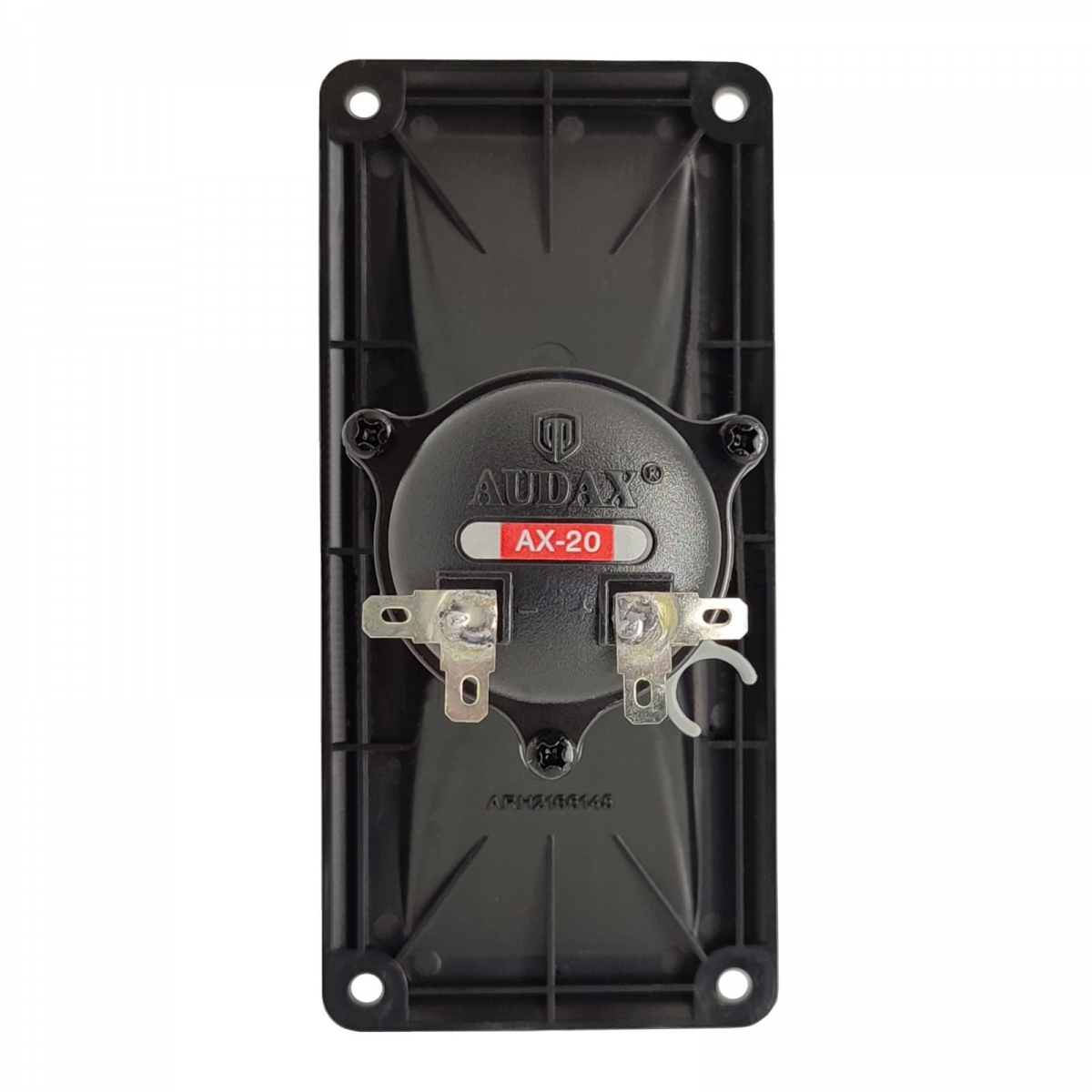

Audax Piezo Tweeter AX-20
| Frequency Response | 4KHz – 27KHz |
|---|---|
| Average Sensitivity | 94dB (1 watt / 1 meter) |
| Maximum Power | 75W (EIA RS426) |
| Handling Capacity | 8 Ohm system reference |
| Maximum Voltage | 15V rms continuous 35V rms intermittent |
| Diaphragm Material | Piezo Ceramic |
| Ceramic Element | 27mm (diameter), 0.08mm (thickness) |
| Product Material | ABS Plastic |
| Product Weight | 55 grams |
| Dimension (W x H x D) | 14.6 x 6.7 x 5.8cm |
ax20
