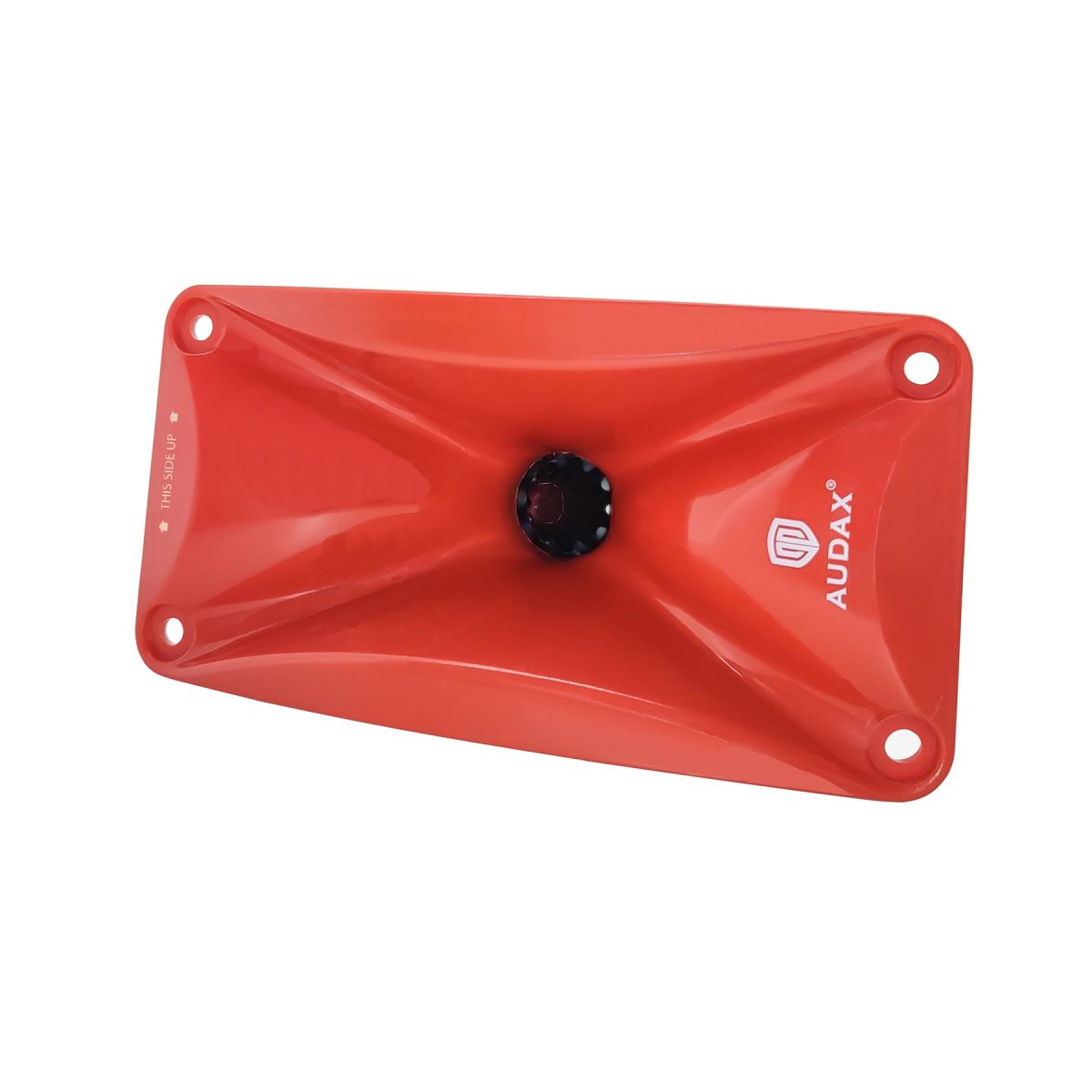

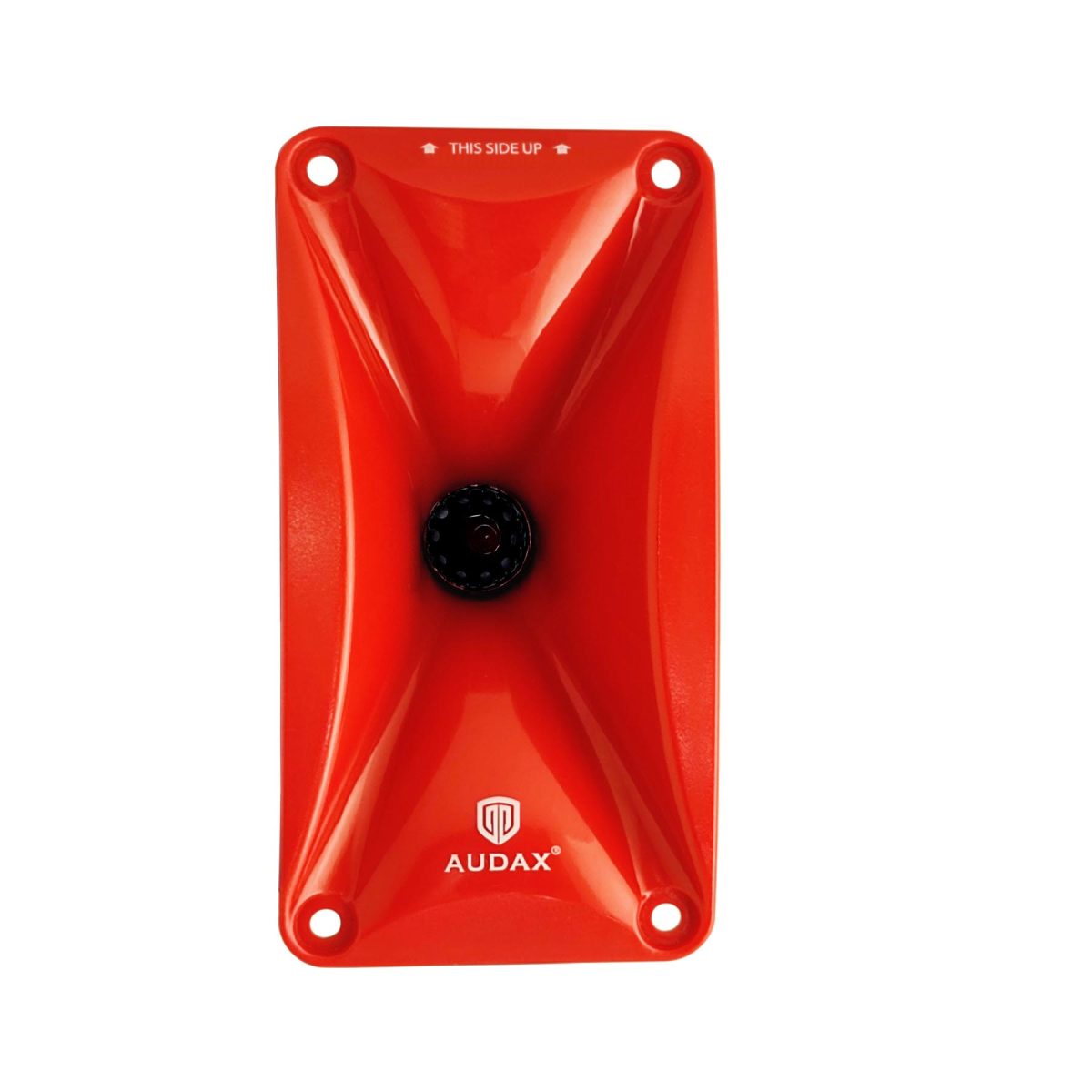

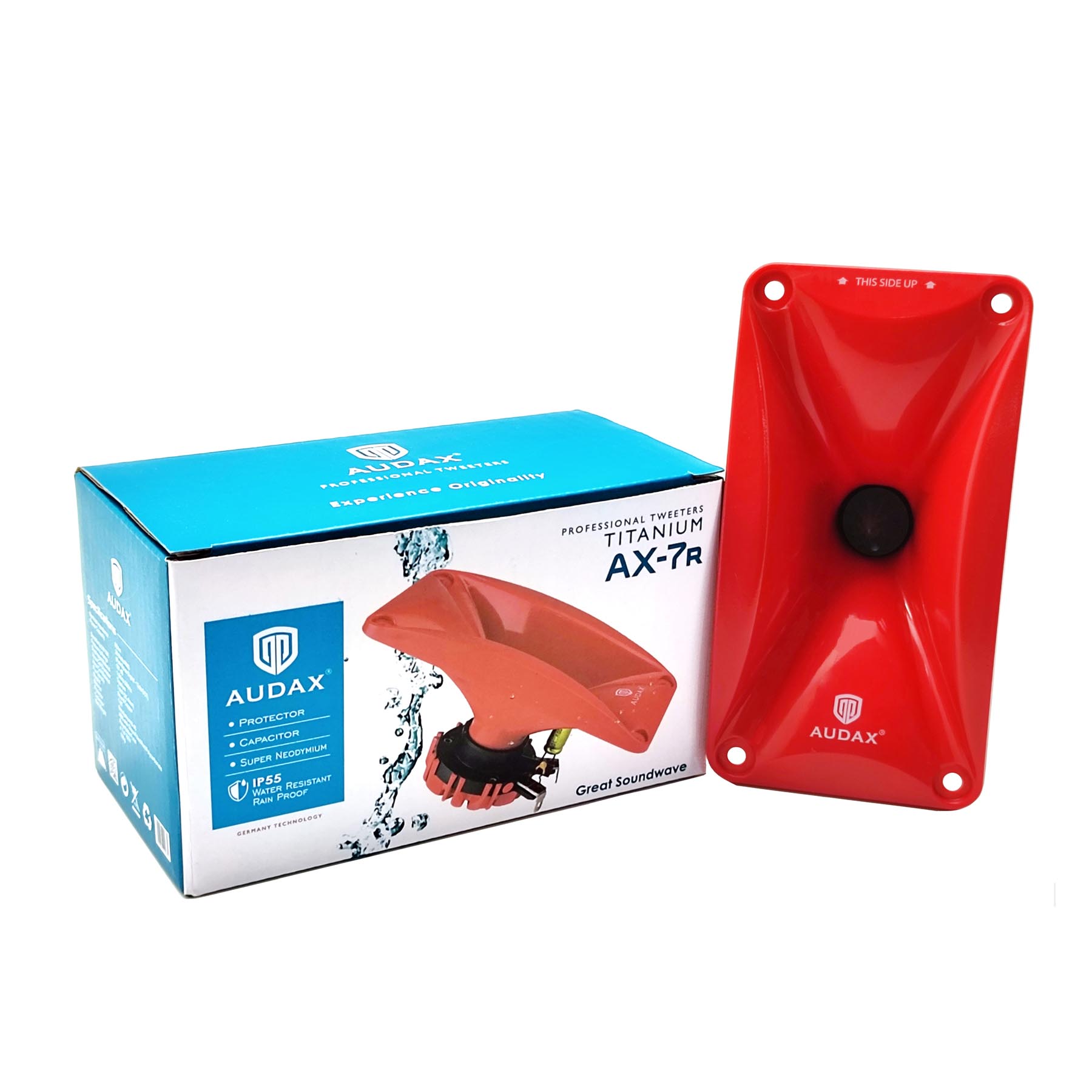

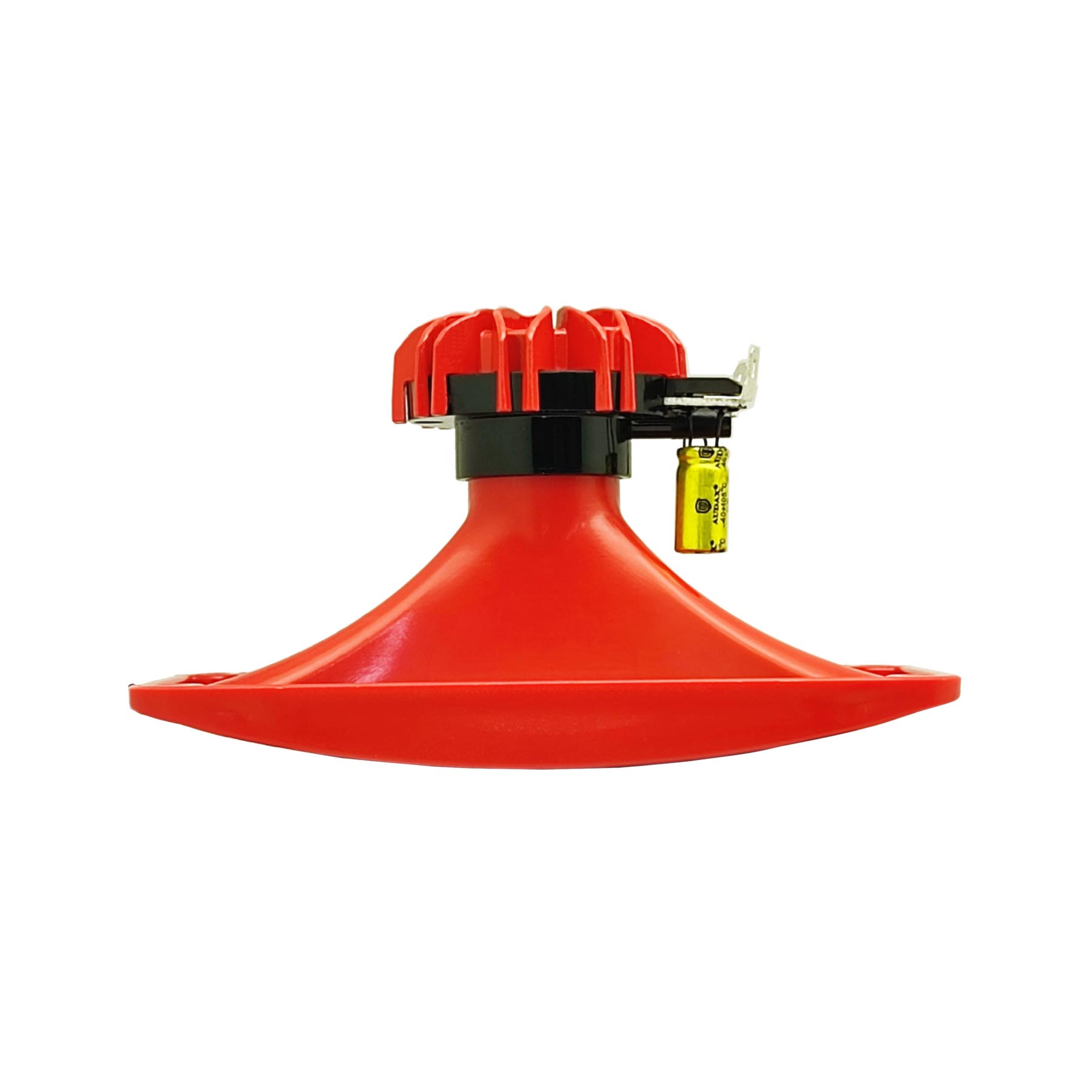

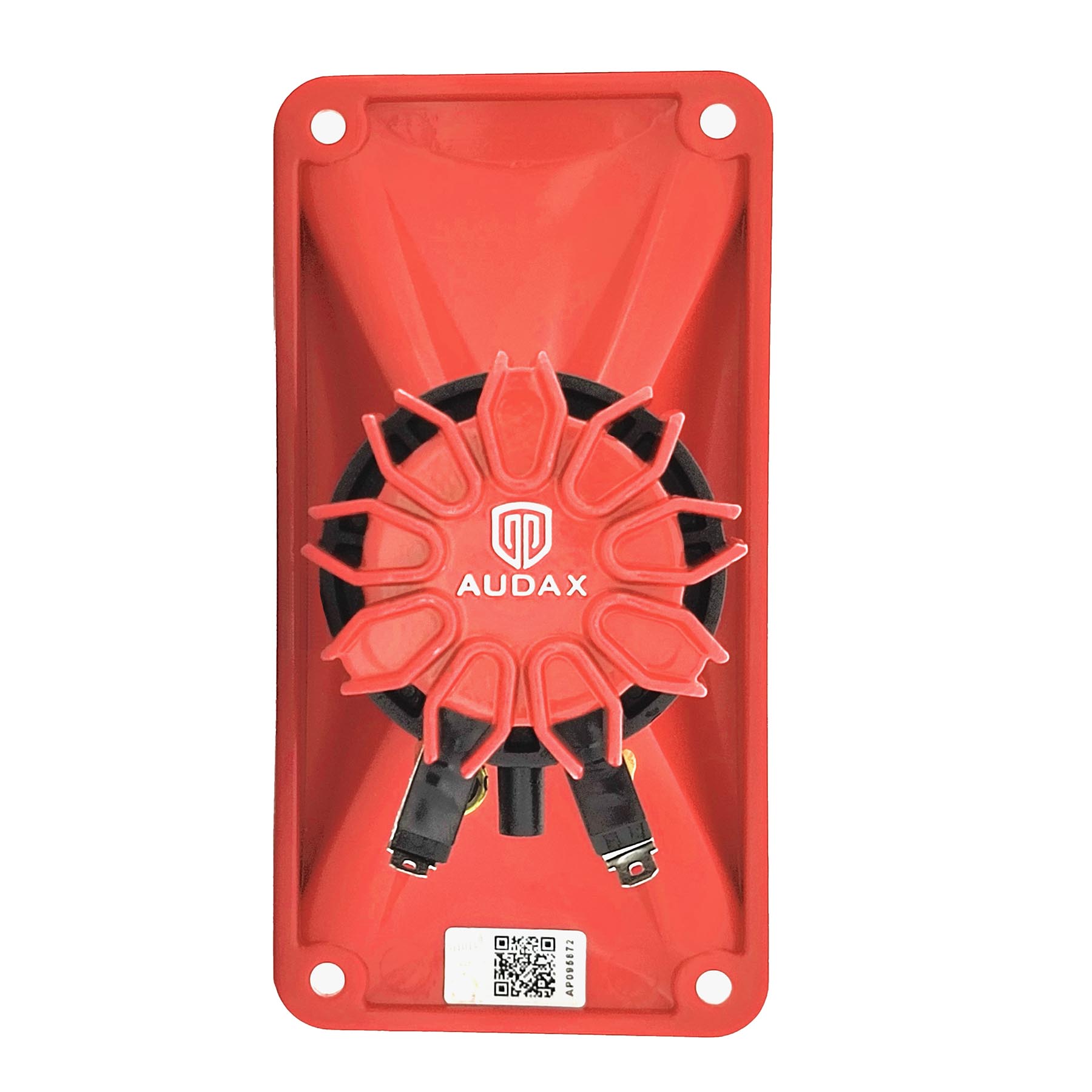

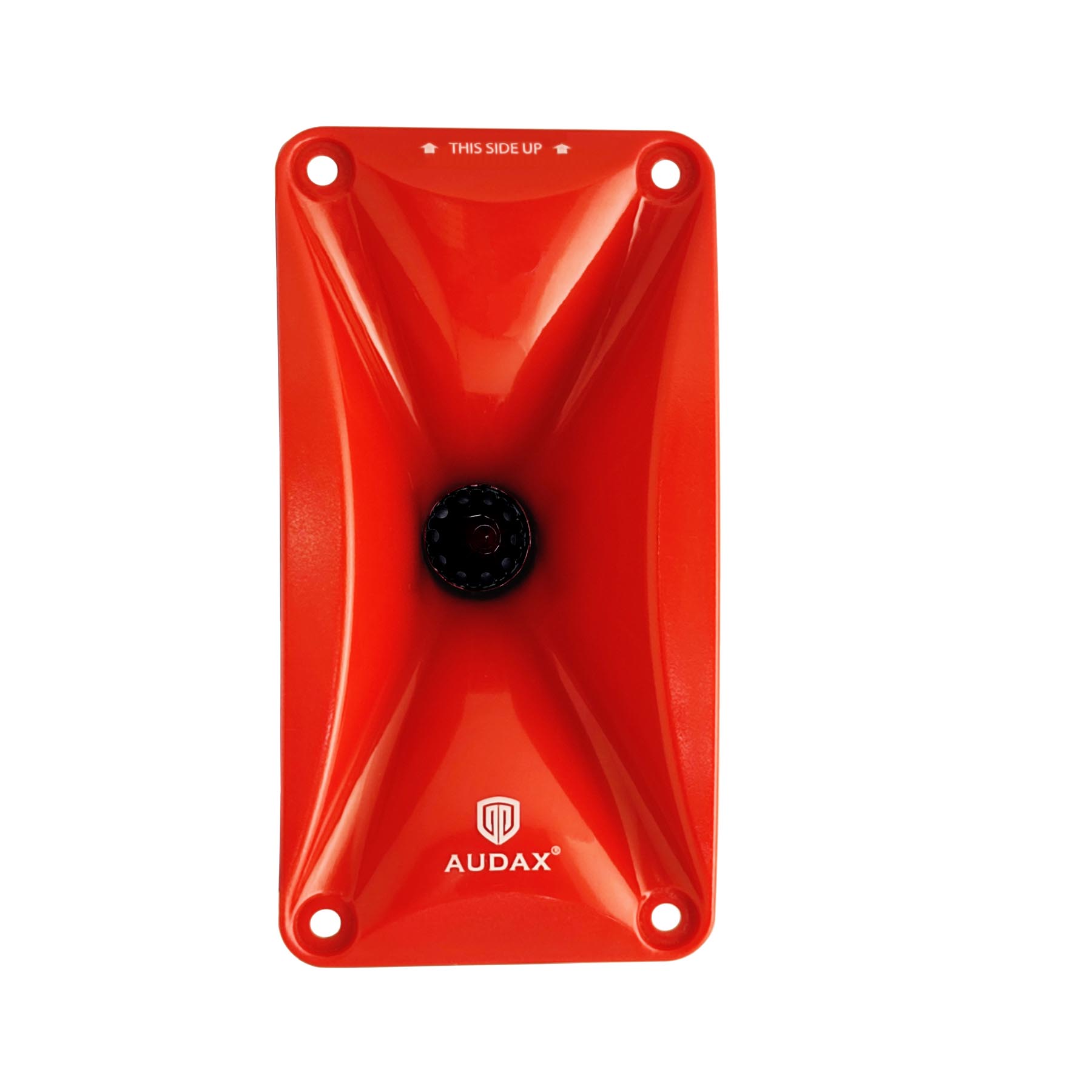

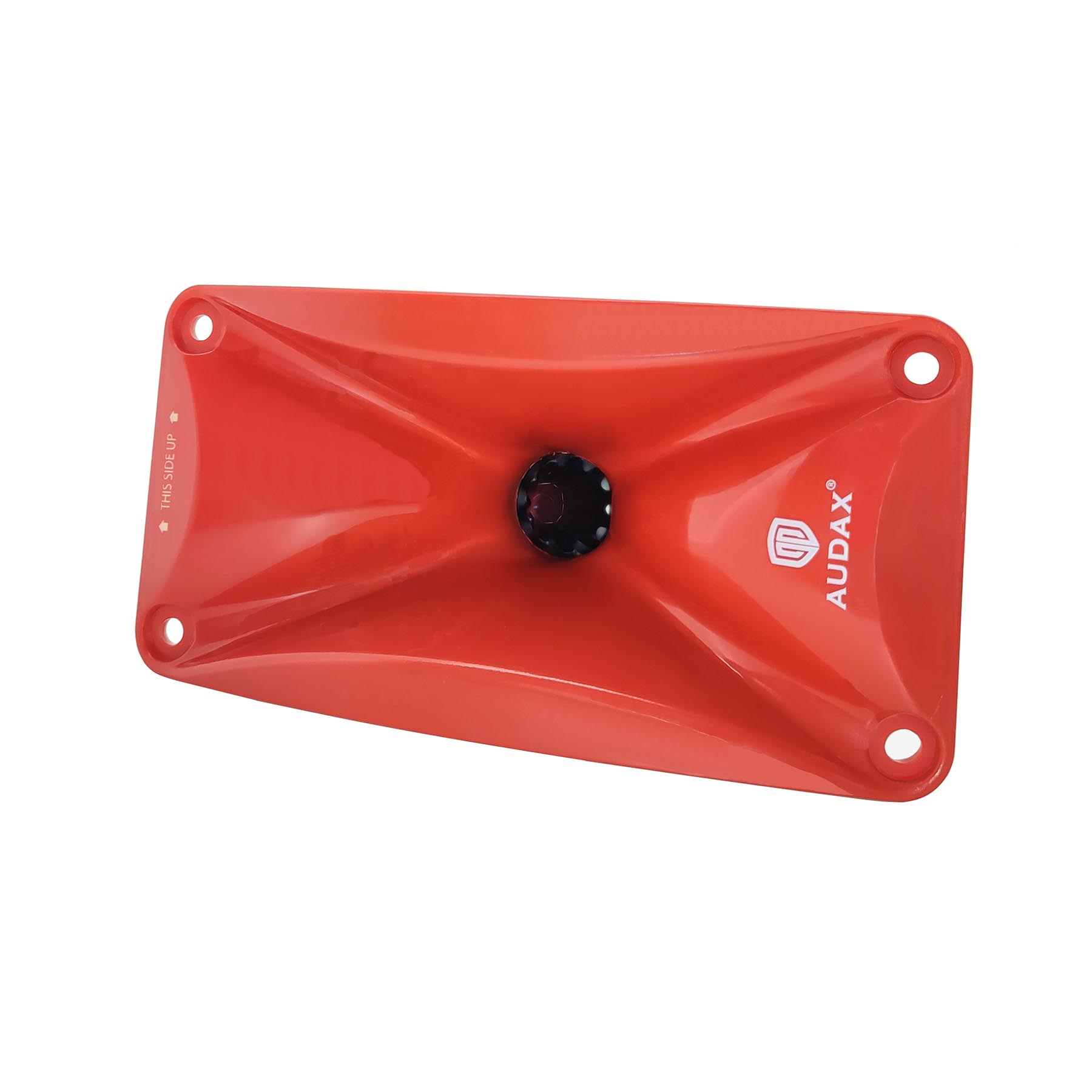

Audax Horn Tweeter AX-7R
| Nominal Impedance | 8 Ohm |
|---|---|
| Power Capacity | 28 Watts RMS (Pink Noise Signal – 12db/OCT) |
| Sensitivity (1W/1M) | 107 dB |
| Frequency Range | 1.5KHz – 20KHz |
| Diaphragm Material | Titanium |
| Voice Coil Diameter | 1 inch (25.4mm) |
| Voice Coil Material | Round Copper |
| Flux Density | 1.6T |
| Magnet | Neodymium N-45 |
| Material | ABS with Glass Filled Red Polycarbonate |
| Protector | Resettable Fuse |
| Capacitor | 4.7uf 100V |
| Nett Weight | 196g |
